Diesel engine safety products for hazardous area applications
Automatic Engine Overspeed Shut Down Valves - D Series
Automatic Engine Overspeed Shut Down Valves
Applications
- Cranes
- Fork Lift Trucks
- Aerial Platforms
- Air Compressors
- Water Pumps
- Mining Machinery
- Fuel Tankers
- Jetting Pumps
- Diesel Mowers
- Vehicles
- Vacuum Trucks
- Hydraulic Power Packs
- Light Towers
- Welding Sets
- Wire Line Units
- Mud Pumps
- Marine Engines
- Aircraft Refuelling Trucks
- Generator Sets
- Seismic Testing Trucks
- Diggers & Back Hoes
- Oil Pollution Skimmers
D – series valves
The ‘D’ SERIES air intake valves were designed to automatically shut down if the engine overspeeds for any reason.
DF –series valves
Automatic overspeed shutdown valve C/W manual actuator to enable manual Emergency valve closure
Auto-Manual Overspeed Valve Types D-AM
Features
• Automatic valves with the addition of manual shutdown via a cable and pull handle • Meets US Bureau of Ocean Energy Management (BOEM) regulations for both continuously monitored and remote unattended engine operations • The manual shutdown does not affect the automatic overspeed protection feature • Secure ‘T’ pull handle ensures complete and easy manual testing of valve function
Auto-Manual Overspeed Valve Types DF-AM
Features
• Automatic valves with the addition of manual shutdown via a cable and pull handle • Meets US Bureau of Ocean Energy Management (BOEM) regulations for both continuously monitored and remote unattended engine operations • The manual shutdown does not affect the automatic overspeed protection feature • Secure ‘T’ pull handle ensures complete and easy manual testing of valve function
Air intake valves with manual shut down
combined with automatic shut down on overspeed or loss of an oil (or air) pressure signal - Types TMZ
Features
• Cost effective valve combining automatic overspeed shutdown with shutdown on loss of oil (or air) pressure and manual shut down • Can be combined with AMOT mechanical temperature sensors to also give shut down on high temperatures • Easy to set overspeed trip point / requires no speed signal input • Optional ZMZ zinc body versions for Group 1 mining applications
Air intake valves with manual shut down
combined with automatic shut down on overspeed or loss of an oil (or air) pressure signal - Types D-AMZ
Features
• Cost effective valve combining automatic overspeed shutdown with shutdown on loss of oil (or air) pressure and manual shut down • Can be combined with AMOT mechanical temperature sensors to also give shut down on high temperatures • Easy to set overspeed trip point / requires no speed signal input • Optional ZMZ zinc body versions for Group 1 mining applications
Air intake valves with automatic shut down
on engine overspeed or on application of an air pressure signal Types TPZ
Features
• Simple cost effective valves combining automatic overspeed shut down with air pressure operated shut down • No speed signal or power input needed • Light weight construction - easy to install and adjust - low maintenance • Automatic reset after engine shuts down and air pressure signal removed • TPZ range suitable for engine ratings between 7.5kw and 149kw and intake pipe bores between 40mm to 108mm
Air intake valves with automatic shut down
on engine overspeed or on application of an air pressure signal Types D-AMP
Features
• Simple cost effective valves combining automatic overspeed shut down with air pressure operated shut down • No speed signal or power input needed • Light weight construction - easy to install and adjust - low maintenance • Automatic reset after engine shuts down and air pressure signal removed • D-AP/ D-AMP valves can be selected to suit engine ratings from 80kw up to 605kw and engine air intake hose bores from 76mm to 229mm
Butterfly Valves
Butterfly valves air intake shutdown Compact, light weight design Fast acting closure Activated by speed sensing switch

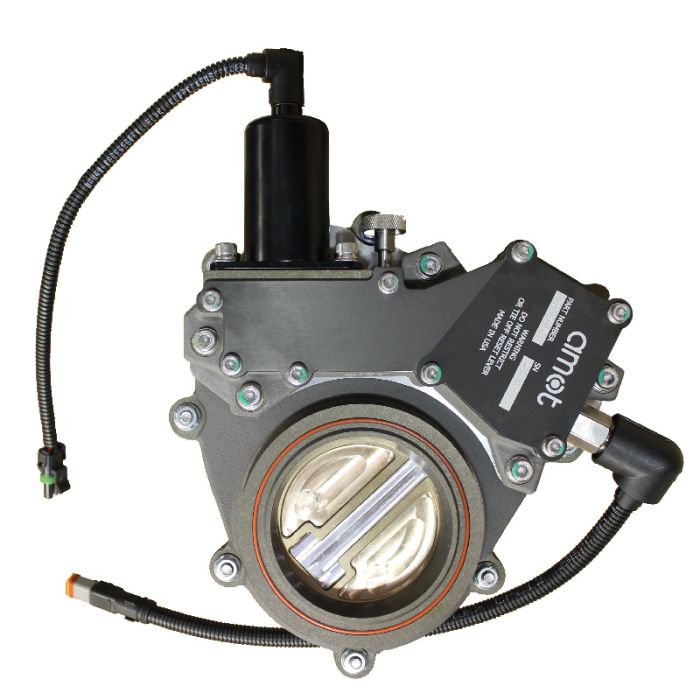

Swing Gate Valves
Slim swing gate design Fast acting positive spring closure Wide variety of inlet pipe connections High temperature options Flange mount options
Exhaust spark arrestors
For a range of diesel engines ATEX approved
Speed Switch & Magnetic Pick up
Actuation Kits
Installation Kits

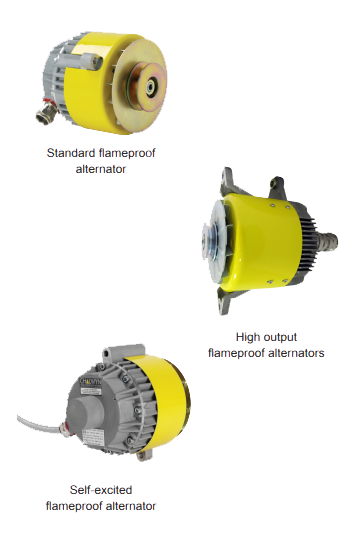

Flameproof Alternators
New Offshore / Marine Standards for Hazardous Locations
Engines with standard automotive alternators are a potential source of ignition, when operating in hazardous areas where combustible gas may exist. Chalwyn offers a wide variety of flameproof alternators: standard automotive, self-exciting, and high output (12V/24V) specially built for hazardous area applications.
New Standard for Oil & Gas Industry: ASTM F2876-10
“All electrical or electronic equipment associated with engine installations in hazardous locations shall be tested or approved and listed or certified by an independent laboratory for the Class and Group of the cargo carried or the hazardous location to the standards and protection techniques...”
Tested and Approved
All our flameproof alternators are tested and approved to stringent standards, for use in ATEX, IECEx and NEC defined hazardous areas. Suitable for a wide range of ambient temperatures, Chalwyn alternators are an ideal choice for inland/offshore oil and gas industry.
Compact High Performance Design
Our alternator will fit in place of most standard automotive alternator configurations. The output voltage is controlled by an internal regulator with multiple harness gland connections available.
